Automatic Folder Gluer Machine Touch Screen Control Adjustable Speed For Carton Box

Name: Automatic Folder Gluer Machine Touch Screen Control Adjustable Speed For Carton Box
Brand: Quanheng
Price: 1 USD

China Automatic Folder Gluer Machine Touch Screen Control Adjustable Speed For Carton Box wholesale

Brand Name : Quanheng

Model Number : QHAFG-AT

Certification : CE,ISO

Place of Origin : China

MOQ : 1set

Price : Negotiate

Supply Ability : 100 SETS PER YEAR

Delivery Time : 30DAYS

Packaging Details : STARDARD

Application : corrugated carton box

Usage : carton box making

Function : folding gluing box

Voltage : customer

Automatic Grade : automatic

After-sales Service : Overseas service center available

Contact Now

QHAFG-AT Automatic Folder Gluer Machine

Description&Feature:

automatic folder gluer machine consists of three section: vacuum feeding section ,gluing and folding section,counter and stacker section.

All motors except frequency conversion motor adopt Taiwan Chengbond motor,Frequency conversion motor with quality inverter adjust speed.PLC and Touch screen control system for easy operation and running stable.The maximum speed is 130meters/min,average speed is 100meters/min.Energy conservation and high speed,saving labor cost.

Technical parameters:

Model	QH-2400	QH-2500
Max.Cardboard(mm)	900*2200	1200*2500
Min.Cardboard(mm)	300*900	300*900
Dimensions(mm)	L11000W3000H1600	L12500W3200H1600
Total weight	5500kg	6500kg
Power Required	12KW 380V 3Phase 50HZ	12KW 380V 3Phase 50HZ
Paperboard thickness	3 or 5 later paperboard
Control	PLC&Touch Screen

Main structure of machine:

Feeding Section:

Vacuum suction feeding to feed warping paperboard easily
Quality electromagnetic clutch and brake adopted,feeding section controlled independently,operation easily.
Stainless steel glue wheel adopted,long life and saving glue cost
Second creasing struction can impress again the paperboard which was not creased well

Gluing and Folding Section:

Simpless structure and high reliability,glue quantity adjustable,cleaning easily
Creaser wheel adjustable,suit for 2-8mm thick paperboard
Imported quality rubber belt adopted,automatic folding
With paperboard retify device and creasing rectify device

Counter and Stacker Section:

Stacking and counting are simple and reliable
Digital control,operation easily and reliable.No-stop in data and automatic counting
With rectification function
Paperboard counting and put out by pneumatic,stable and quickly

Product Tags:

auto gluing machine

carton folding gluing machine

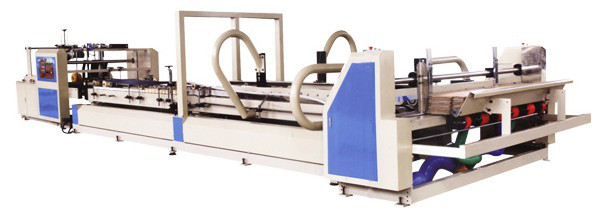

Automatic Folder Gluer Machine Touch Screen Control Adjustable Speed For Carton Box Images
